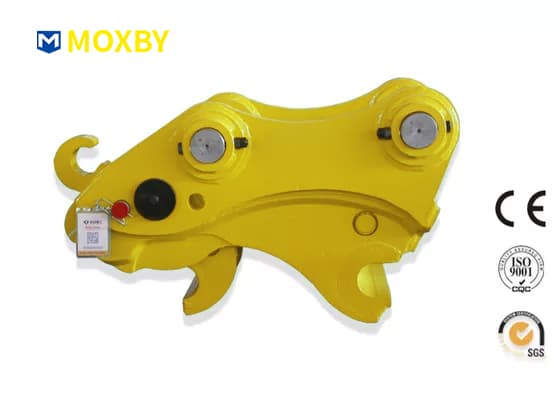

Mechanical Quick Coupler

Maximize your machine’s potential with a robust and economical Mechanical Quick Coupler for Excavators. Designed for ultimate durability, minimal maintenance, and unmatched operational safety, this quick hitch is the definitive choice for owner-operators of everything from mini excavators (3-8 ton) to medium-duty machines.

Simple Operation: Achieve rapid attachment changes with a straightforward manual process.
Cost-Effective: Drastically lower initial investment and zero hydraulic maintenance costs.
Enhanced Safety: Provides visible, physical confirmation of a secure lock, crucial for compliance.
Wide Compatibility: Easily handles a variety of buckets and tools, addressing concerns about mechanical pin grabber coupler compatibility with Bobcat and other major brands.

Specification
Overview
Features
Applications
Media
Certificates
Workshop
Delivery

Category	Unit	MINI	MXB-02	MXB-04	MXB-06	MXB-08	MXB-08S	MXB-10	MXB-14	MXB-17	MXB-20
Length	mm	300-450	520-542	581-610	760	920-955	950-1000	965-1100	980-1120	1005-1150	1100-1200
Width	mm	150-250	260-266	265-283	351-454	450-483	445-493	543-572	550-600	602-666	610-760
Height	mm	225-270	312	318	400	512	512-540	585	550-600	560-615	620-750
Arm Open Width	mm	82-145	155-172	181-205	230-317	290-345	300-350	345-425	380-450	380-480	500-650
Pins Center Distance	mm	95-220	220-275	290-350	350-400	430-480	450-505	485-530	550-600	520-630	600-800
Pin Diameter	mm	25-40	40-45	45-55	60-65	70-80	90	90-100	100-110	100-110	120-140
Cylinder Stroke	mm	95-200	200-300	300-350	340-440	420-510	450-530	460-560	510-580	500-650	600-700
Vertical Pins Center Distance	mm	170-190	200-210	205-220	240-255	300	320	350-370	370-380	370-380	370-380
Weight	kg	30-40	50-75	80-110	170-210	350-390	370-410	410-520	550-750	550-750	1300-1500
Working Pressure	bar	30-400	30-400	30-400	30-400	30-400	30-400	30-400	30-400	30-400	30-400
Necessary Flow	l/min	10-20	10-20	10-20	10-20	10-20	10-20	10-20	10-20	10-20	10-20
Suitable Excavator	ton	1-4	4-7	6-9	10-15	18-23	23-26	26-30	30-40	40-52	55-90

The Mechanical Quick Coupler, commonly known in the field as the Manual Quick Hitch or Pin Grabber Coupler, is an essential implement that replaces the need for cumbersome manual pin changes. Its design focuses on pure physical mechanics rather than complex hydraulics, making it exceptionally reliable in harsh construction environments.

By requiring the operator to use a Quick Release Tool Bar (or lever) to engage the lock, this system eliminates hydraulic leaks and electronic failures. It is the perfect solution for users of 1-8 ton excavators seeking a durable, low-tech alternative that keeps operating costs to an absolute minimum.

✅ Advantages: Why Mechanical is the Smart Choice

Choosing a mechanical system offers compelling benefits over hydraulic alternatives:

Unbeatable Cost-to-Value Ratio: Compare the mechanical vs hydraulic quick coupler maintenance cost—the mechanical system wins outright. Lower initial purchase price combined with zero cost for hydraulic fluid, hoses, or seal replacement offers significant long-term savings.
Ultimate Reliability: Without vulnerable hydraulic components, this quick hitch is less susceptible to damage from debris, extreme temperatures, or rough handling, eliminating the potential for a hydraulic failure that requires a costly site visit.
Clear Security Confirmation: The physical act of inserting and securing the safety pin gives the operator unambiguous, visual proof that the attachment is locked—a feature that often brings peace of mind and improves site safety compliance.
Simplified Installation: The mechanical pin grabber coupler installation guide typically involves a less complex process than hydraulic setups, reducing the total time and expense required to get your machine back to work.

Dual-Point Pin Grabbing: The core mechanism securely grips both the front and rear attachment pins simultaneously, ensuring a tight, stable connection without slop or rattle.
Positive Safety Locking: Every unit includes a mandatory, high-visibility Captive Safety Pin. Securing this pin is the final, essential step in the safety procedure for mechanical quick coupler operation and serves as the ultimate failsafe against unintentional tool release.
Self-Adjusting Design: Our advanced engineering minimizes bucket movement and reduces wear on pivot points. This self-tightening design helps prolong the lifespan of both your coupler and your expensive attachments.
ISO 13031 Compliance: The design meets or exceeds critical international safety standards, providing assurance that your machine operates safely and within industry regulations.
Reverse Mounting Capability: Easily supports mounting the bucket in a shovel (reversed) position, providing extra versatility for tasks like grading and digging right up against walls or foundations.

The Mechanical Quick Coupler is a highly versatile component, suitable across numerous applications:

Residential & Utility Work: Ideal for mini excavators 3 ton performing detailed trenching and site finishing where space is limited.
General Contracting: Rapidly switching between standard digging buckets, grading blades, and specialty attachments (e.g., tampers).
Farming & Landscaping: The straightforward design is perfect for backhoe loaders used in property maintenance and material moving.
Cost-Conscious Fleets: A reliable choice for rental companies and operators primarily concerned with keeping the mechanical quick coupler maintenance cost negligible.
